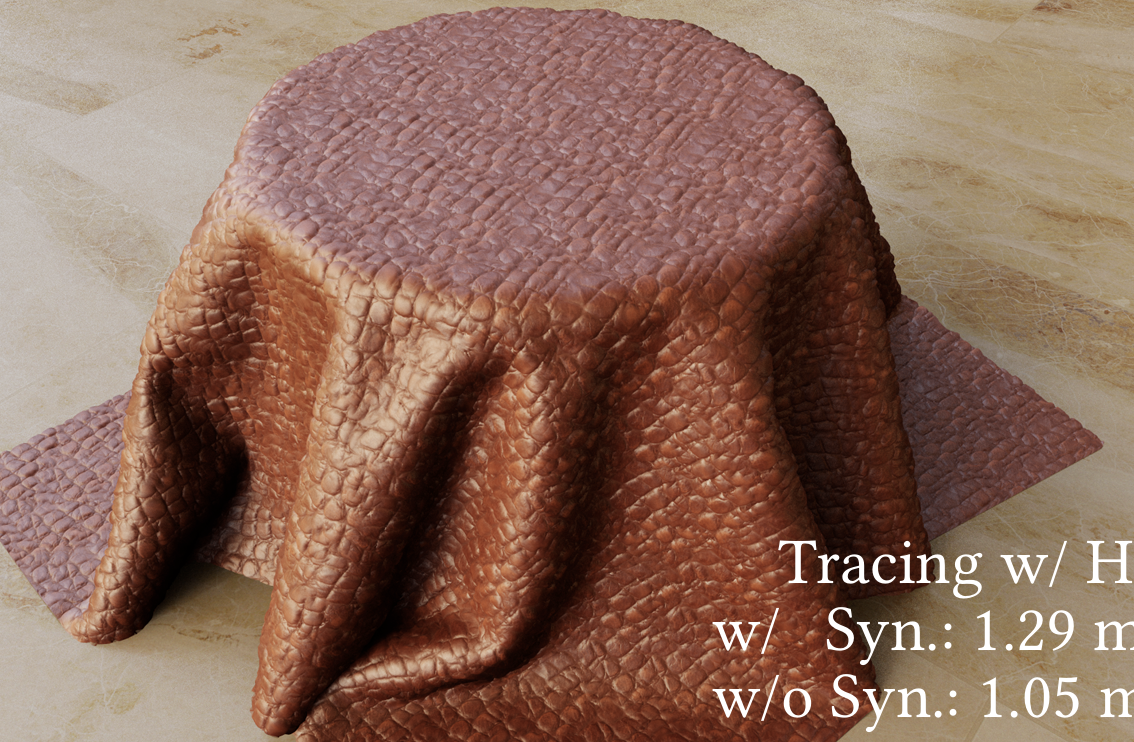

A Dynamic By-example BTF Synthesis Scheme
Zilin Xu, Zahra Montazeri, Beibei Wang, Ling-Qi Yan
ACM SIGGRAPH Asia 2024 (conference track full paper), Dec 2024 [Paper]
Measured Bidirectional Texture Function (BTF) can faithfully reproduce a realistic appearance but is costly to acquire and store due to its 6D nature (2D spatial and 4D angular). Therefore, it is practical and necessary for rendering to synthesize BTFs from a small example patch. While previous methods managed to produce plausible results, we find that they seldomly take into consideration the property of being dynamic, so a BTF must be synthesized before the rendering process, resulting in limited size, costly pre-generation and storage issues. In this paper, we propose a dynamic BTF synthesis scheme, where a BTF at any position only needs to be synthesized when being queried. Our insight is that, with the recent advances in neural dimension reduction methods, a BTF can be decomposed into disjoint low-dimensional components. We can perform dynamic synthesis only on the positional dimensions, and during rendering, recover the BTF by querying and combining these low-dimensional functions with the help of a lightweight Multilayer Perceptron (MLP). Consequently, we obtain a fully dynamic 6D BTF synthesis scheme that does not require any pre-generation, which enables efficient rendering of our infinitely large and non-repetitive BTFs on the fly. We demonstrate the effectiveness of our method through various types of BTFs taken from UBO2014.

A Multi-scale Yarn Appearance Model with Fiber Details
Apoorv Khattar, Junqiu Zhu, Jean-Marie Aubry, Emiliano Padovani, Marc Droske, Ling-Qi Yan, Zahra Montazeri
Computational Visual Media, 2024 [Paper] [Video] [Slides]
Rendering realistic cloth has always been a challenge due to its intricate structure. Cloth is made up of fibers, plies, and yarns, and previous curved-based models, while detailed, were computationally expensive and inflexible for large cloth. To address this, we propose a simplified approach. We introduce a geometric aggregation technique that reduces ray-tracing computation by using fewer curves, focusing only on yarn curves. Our model generates ply and fiber shapes implicitly, compensating for the lack of explicit geometry with a novel shadowing component. We also present a shad- ing model that simplifies light interactions among fibers by categorizing them into four components, accurately capturing specular and scattered light in both forward and backward directions. To render large cloth efficiently, we propose a multi-scale solution based on pixel coverage. Our yarn shad- ing model achieves 3-5 times faster rendering speed with less memory in near-field views compared to fiber-based models. Additionally, our multi-scale solution offers a 20% speed boost for distant cloth observation.

A Hierarchical Architecture for Neural Materials
Bowen Xue, Shuang Zhao, Henrik Wann Jensen, Zahra Montazeri
Computer Graphics Forum, 2024 [Paper] [Video]
Neural reflectance models are capable of reproducing the spatially-varying appearance of many real-world materials at different scales. Unfortunately, existing techniques such as NeuMIP have difficulties handling materials with strong shadowing effects or detailed specular highlights. In this paper, we introduce a neural appearance model that offers a new level of accuracy. Central to our model is an inception-based core network structure that captures material appearances at multiple scales using parallel-operating kernels and ensures multi-stage features through specialized convolution layers. Furthermore, we encode the inputs into frequency space, introduce a gradient-based loss, and employ it adaptive to the progress of the learning phase. We demonstrate the effectiveness of our method using a variety of synthetic and real examples.

Neural Appearance Model for Cloth Rendering
Guan Yu Soh, Zahra Montazeri
Computer Graphics Forum (Proceedings of EGSR 2024) [Paper] [Video]
The realistic rendering of woven and knitted fabrics has posed significant challenges throughout many years. Previously, fiberbased micro-appearance models have achieved considerable success in attaining high levels of realism. However, rendering such models remains complex due to the intricate internal scatterings of hundreds of fibers within a yarn, requiring vast amounts of memory and time to render. In this paper, we introduce a new framework to capture aggregated appearance by tracing many light paths through the underlying fiber geometry. We then employ lightweight neural networks to accurately model the aggregated BSDF, which allows for the precise modeling of a diverse array of materials while offering substantial improvements in speed and reductions in memory. Furthermore, we introduce a novel importance sampling scheme to further speed up the rate of convergence. We validate the efficacy and versatility of our framework through comparisons with preceding fiber-based shading models as well as the most recent yarn-based model.

ReflectanceFusion: Diffusion-based text to SVBRDF Generation
Bowen Xue, Giuseppe Claudio Guarnera, Shuang Zhao, Zahra Montazeri
Eurographics Symposium on Rendering (EGSR), 2024 [Paper] [Video]
We introduce ReflectanceFusion (Reflectance Diffusion), a new neural text-to-texture model capable of generating high-fidelity SVBRDF maps from textual descriptions. Our method leverages a tandem neural approach, consisting of two modules, to accurately model the distribution of spatially varying reflectance as described by text prompts. Initially, we employ a pre-trained stable diffusion 2 model to generate a latent representation that informs the overall shape of the material and serves as our backbone model. Then, our ReflectanceUNet enables fine-tuning control over the material’s physical appearance and generates SVBRDF maps. ReflectanceUNet module is trained on an extensive dataset comprising approximately 200,000 synthetic spatially varying materials. Our generative SVBRDF diffusion model allows for the synthesis of multiple SVBRDF estimates from a single textual input, offering users the possibility to choose the output that best aligns with their requirements. We illustrate our method’s versatility by generating SVBRDF maps from a range of textual descriptions, both specific and broad. Our ReflectanceUNet model can integrate optional physical parameters, such as roughness and specularity, enhancing customization. When the backbone module is fixed, the ReflectanceUNet module refines the material, allowing direct edits to its physical attributes. Comparative evaluations demonstrate that ReflectanceFusion achieves better accuracy than existing text-to-material models, such as Text2Mat, while also providing the benefits of editable and relightable SVBRDF maps.

Learning to Rasterize Differentiably
Chenghao Wu, Hamila Mailee, Zahra Montazeri, Tobias Ritschel
Computer Graphics Forum (Proceedings of EGSR 2024) [Paper] [Project page]
Differentiable rasterization changes the standard formulation of primitive rasterization —by enabling gradient flow from a pixel to its underlying triangles— using distribution functions in different stages of rendering, creating a “soft” version of the original rasterizer. However, choosing the optimal softening function that ensures the best performance and convergence to a desired goal requires trial and error. Previous work has analyzed and compared several combinations of softening. In this work, we take it a step further and, instead of making a combinatorial choice of softening operations, parameterize the continuous space of common softening operations. We study meta-learning tunable softness functions over a set of inverse rendering tasks (2D and 3D shape, pose and occlusion) so it generalizes to new and unseen differentiable rendering tasks with optimal softness.
